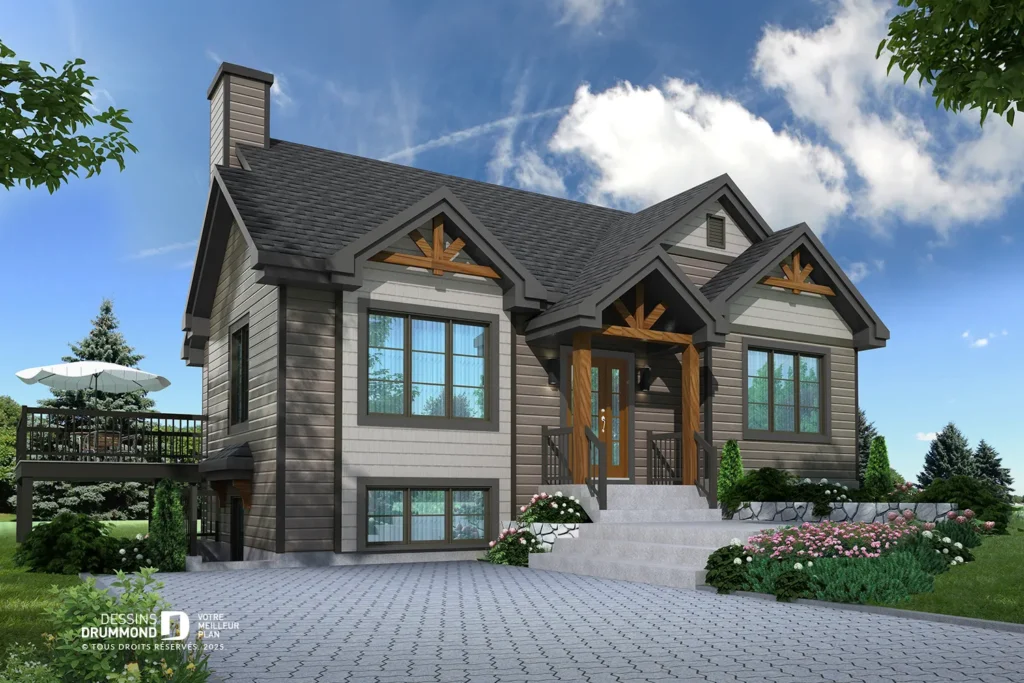

By offering a split entrance and direct access to the basement, this plan W2131-V1, is more like a two-storey house than a single-storey house. Indeed, its abundant fenestration, its large side/rear terrace in the back and its exposed daylight / walkout basement make it a very luminous house. The lobby is large and offers a convenient coat closet located nearby. The good size living room receives natural light from windows located at the front and on the side of it. Moreover, an imposing fireplace located centrally, will contribute to the ambience of the living room as well as to the kitchen / dining area. A good size dining area provides lots of natural light and direct access to the large side terrace through French doors, and is large enough to accommodate a table for 6 people. The L-shaped kitchen features a large island and again, windows over the kitchen sink, for lots of natural light. The master bedroom is located on the ground floor, right next to a large bathroom. This last is segmented with a bath-shower and laundry on one side, and toilet, sink and linen closet on the other. The basement is accessible from the ground floor, but also directly from the outside via a covered staircase. This could allow, if your municipality offers you this option, to set up a bachelor or dwelling in the basement (income property ?). Two to three bedrooms, a shower room and a family room are located in the daylight / walkout basement.
THE STANDARD LAPRISE HIGH PERFORMANCE EXTERIOR WALLS (Rt-32.6) with anti-torsion and anti-thermal bridge features are factory-built with 5 ½’’ thick fiberglass insulation and 2’’x 6’’ positioned at 16’’ c-c, using world-class equipment, as per plan, and consists of:
Vertical exterior laths of 1’’x3’’; Continuous rigid insulation of 1½’’ and ½’’ plywood covering the entire surface of the walls; 2’’x 6’’ dried wood sills, studs, and top plate; lintels (wood or engineered wood); Sealed polyethylene membrane serving as a vapor barrier; Factory-installed double lathing; Acoustic sealant; Tape and seal weathershield and vapor barrier joints.
OPTION FIBERGLASS WOOL (Rt-38.7) : Very High Performance Walls with 7 ½’’ thick fiberglass insulation in 2’’x 8’’ for superior thermal performance;
OPTION ROCK WOOL (Rt-32.6) : High Performance Walls with 5 ½’’ thick rock wool insulation in 2’’x 6’’;
OPTION ROCK WOOL (Rt-38.7) : Very High Performance Walls with 7 ½’’ thick rock wool insulation in 2’’x 8’’ for superior thermal performance and resistance to sound, fire, water, microorganisms, mold, termites, and other insects.
Pre-assembled non load-bearing divisions with anti-torsion system ready for drywalling installation; Pre-assembled load-bearing divisions with anti-torsion system ready for drywalling installation; Unassembled basement divisions (according to plan); 2"x4" or 2"x6" wood studs (dry wood);
Tongue-and-groove 5/8’’ plywood, glue, and screws; Floor beams and joists; Brackets for fastening and nails; Load-bearing columns; Floor perimeter joists; Perimeter insulation with urethane (included if insulation installation is part of the contract); Structural beams; Anchor plates; Podium bath enclosure (according to the plan).
Plywood ½" (gables and roofs); Asphalt architectural shingles and accessories; Plastic cement (pitch); Shingled starters; Drip edge flashings; Eaves protection and self-adhesive membranes (according to plan); Galvanized steel valley flashings; Roof trusses and bracing; Self-adhesive membranes (according to plan). Attic fan.
Attic insulation; Insulated R-60 attic access hatch; 1’’x3’’ ceiling laths at 16’’c-c; Sealed polyethylene membrane serving as a vapor barrier; tape and sealant to seal vapor barrier joints; Ventilation deflectors.
Lorendo PVC windows with energy-efficient thermal glasses with PVC-covered interior window jamb extensions; Windows & doors head flashings; ; Insulated exterior steel doors; Exterior door handles; Insulated steel garage door (according to plan); factory-installed waterproofing membrane around openings; Insulating foam (urethane spray) around openings (doors and windows).
Aluminum ventilated soffit; Fascia (according to plan); Lightweight exterior siding (vinyl, wood fiber or wood) and finishing accessories (according to plan); Sun guard beams (according to plan); External load-bearing columns/posts (according to plan); Balcony and/or patio and/or gallery (according to plan); Decorative elements (according to plan); Traditional masonry not included; Concrete balcony/porch included if Foundation Category is included in sales contract; Fireplace box (according to plan).
Drywall boards ½" and screws; Baseboards and moldings; Interior doors; Interior door handles and hardware; Adjustable closet rail-based storage system with rods, poles and wire shelves; Staircase, guardrail and hand rails (according to plan); Decorative elements (according to plan); HVR Heat & ventilation recovery device with control and one timer per bathroom.
Kit transportation is included within 300 km from the city of Montmagny (Quebec) by municipal road network. Every additional km (exceeding 300 km) is calculated according to the kit delivery/construction address. Transport by sea not included. *FOB price applies for delivery outside the province of Quebec.
Excavation; Foundation and foundation insulation; Kit installation and subcontracting works (plumbing, electricity, etc.); Floor coverings; Drywalling: plastering/jointing; Painting; Wood fireplace and its prefabricated fireplace; Kitchen & bathroom cabinets and built-ins; Masonry stones; Gutters; Dry wall corners; Land and services; Other possible exclusions.
